Peak Forces During Running

Running
Running demands a lot on our bodies, so while being the most convenient form of exercise, we cannot neglect the forces that it endures.
Picture of Ben McGinness

Ben McGinness

Physiotherapist

Picture of Ben McGinness

Ben McGinness

Physiotherapist

Running is one of the most convenient and popular forms of physical activity, making it easy for people to take up. Whether you are just starting out running, or an experienced athlete, the forces our body experiences during a run are higher than you may think. Different types of running including jogging, sprinting, trails, hills or changing direction result in peak forces placed upon different parts of our legs. These forces can exceed multiple times our body weight.

Ensuring our bodies, especially our legs, are strong and flexible enough to withstand the peak forces during running are important for injury prevention. In this blog, we will examine the forces required by the three main joints contributing to running: calf/ankle complex, knee joint and the hip joint.

Calf Complex/Ankle Joint

The calf complex has the most research and data regarding the force it experiences during running. It contributes to roughly a third of total lower-body output across both horizontal and vertical dynamic tasks. The calf complex assists other muscle groups during various sporting demands, meaning it is constantly being loaded in different ways.

For a muscle group that is small in cross-sectional area, the calf complex relies on its “stretch-shortening cycle” to tolerate the loads it produces and absorbs during running. Multiple studies have pointed to the soleus as being the critical muscle in this area. The soleus, the deeper calf muscle, may need to absorb up to 85% of a healthy athlete’s peak force, and over 12 times their body weight in higher velocity tasks like jumping and accelerations. The soleus is important to help provide a braking force to protect the ACL in during cutting and landing. Along with the hamstrings, the soleus can produce up to one third of the protective posterior force to prevent ACL injuries.

Injuries commonly occur to the calf muscles and ankle joint from running. The longer time spent on the ground, especially when sprinting, means the body has to absorb more ground reaction force. Limiting the time your foot has in contact allows for our tendons to elastically propel us without absorbing excess force.

For example, having a stiff ankle joint may increased load through the achilles, which controls dorsiflexion range of motion. Approximately 50% of all runners experience achilles tendon pain, with a recurrence rate of 30%. In addition, the great toe contributes 20% of lower limb power during running. While important to have adequate calf strength, ensuring full ankle and foot mobility as well as strength of the foot intrinsic muscles reduces any excessive load absorption on the calf.
Age
Males
Females
20-29
37 reps
30 reps
30-39
32 reps
27 reps
40-49
28 reps
24 reps
50-59
23 reps
21 reps
60-69
19 reps
19 reps
70-79
14 reps
16 reps
80-89
10 reps
13 reps

Normative values for the single-leg calf raise test [Hébert-Losier et al (2017), via Physiopedia]

Knee Joint

When returning to run from a knee injury, especially after surgery, it is essential to regain full knee extension range and achieve 95% flexion range in comparison to the unaffected side. Without these ranges, running gait is altered likely placing increased demand on the hip, patellofemoral joint calf/ankle.

Muscle strength around the knee protects knee joint surfaces from excessive loads. The patello-femoral joint (knee cap) and patella tendon already experience approximately 5-times bodyweight during running, whereas the quadriceps muscles absorb comparatively low one-and-a-half to three times body weight. Quadriceps muscles are responsible for the acceleration, deceleration and cutting during running. They control knee when descending hills, acting in a lengthened position. Hamstring muscles provide knee stability and provide a posterior braking force on the knee during sprinting and cutting. High hamstring strength, especially at length (eccentric strength) helps reduce injury rate of both muscle strains and knee ligament injury.

Hip Joint

The hip joint is a ball and socket joint and requires increased control, especially since it is the largest joint. It has many static and dynamic stabilisers, but also has the ability to propel and brake the body during running. Hip stabilisers will contribute to 4 times the body weight during running, where as glute max the main hip extensor absorbs 1.3 times bodyweight. When running at high speeds, up to 10 times body weight is produced by the hip flexors and hamstrings.

The main muscles acting at the hip during sprinting are your hip extensors, which are involved in high speed acceleration. The gluteal muscles and hamstrings act in synergy with the calf complex, to help propel us forwards when we are running at full speed. The hip flexors contribute most during low speed jogging, carrying us forward in smaller strides. The outside/lateral hip abductors, gluteus medius and minimus, control pelvic stability.

As when we are running we are only ever in contact with the ground with one foot at a time, strength here provides pelvic stability during single leg stance. This prevents pelvic drop, a ‘Trendelenburg’ sign’, and knee valgus, when the knee collapses inwards, in straight line running. Testing hip strength to get a 1:1 ratio between your hip abductors and hip adductors (inner thigh, groin muscles) provides pelvic stability in running gait. When adding speed, change of direction and agility, hip abductors assist in side-stepping and cutting movements, creating that explosive movement with the calf complex to push us into a different direction. Specifically, gluteus medius strength prevents knee valgus, which in turn reduces the likelihood of serious knee ligament injury.

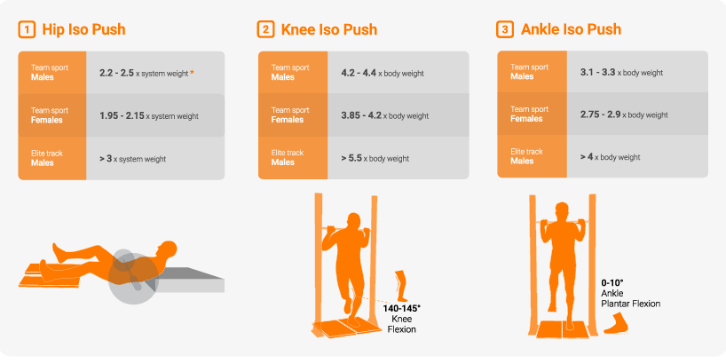

Image taken from VALD Practitioner Series

Testing

With the use of technology, and normative data, our physiotherapy team has a battery of tests to ensure your body is up to the forces required for running. This includes body weight strength, lower limb range of motion, hand held dynamometry isolated muscle strength, as well as Force Plate analysis for run specific strength testing. For a comprehensive analysis, it can be combined into a running assessment to objectively observe each phase of your running cycle. Identifying deficiencies can be crucial in injury prevention, to keep you running stronger and for longer!

Conclusion

Running demands a lot on our bodies, so while being the most convenient form of exercise, we cannot neglect the forces that it endures. Meeting normative strength data for individual body parts can not only prevent injuries locally to that area, but also limits other muscles/joint overload, decreasing secondary injury. Come in to see our Physio team for a full running and strength analysis!

References

Pre-season assessments and monitoring: are returning athletes ‘strong enough’ to run fast?, Expert Insights, VALD Performance,  https://valdperformance.com/news/pre-season-assessments-and-monitoring, 21 July 2023 (last updated 04 July 2025)


What are the peak forces involved during running? The Running Physio, Running Physio, https://www.running-physio.com/peak-forces-graphic/, 28 February 2024.

Practical Musculoskeletal Testing for Runners, Physiopedia contributors, Physiopedia, 18 August 2022, https://www.physio-pedia.com/index.php?title=Practical_Musculoskeletal_Testing_for_Runners&oldid=315030. Page Version ID: 315030

Weyand PG, Sandell RF, Prime DN, Bundle MW. The biological limits to running speed are imposed from the ground up. J Appl Physiol (1985). 2010 Apr;108(4):950-61. doi: 10.1152/japplphysiol.00947.2009. Epub 2010 Jan 21. PMID: 20093666.

O’Neill S, Barry S, Watson P. Plantarflexor strength and endurance deficits associated with mid-portion Achilles tendinopathy: The role of soleus. Phys Ther Sport. 2019 May;37:69-76. doi: 10.1016/j.ptsp.2019.03.002. Epub 2019 Mar 9. PMID: 30884279.

Hébert-Losier K, Wessman C, Alricsson M, Svantesson U. Updated reliability and normative values for the standing heel-rise test in healthy adults. Physiotherapy. 2017 Dec 1;103(4):446-52.
